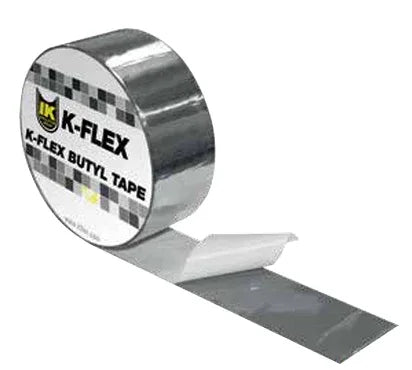

K-FLEX Butyl Tape 100mm 10m long
Professional Butyl Sealing Tape with Reinforced Aluminium Film - 100mm Width
K-FLEX Butyl Tape is a premium self-adhesive sealing tape consisting of a high-performance butyl rubber adhesive compound, protected by a reinforced aluminium film. Highly adhesive even at low temperatures to all common building materials, this professional-grade tape is highly resistant to ageing and UV rays. The 100mm width is ideal for larger sealing applications and wider joints.
Primary Applications
- Sealing and joining materials – Glass, steel, Plexiglas, polycarbonate, wood, aluminium, PVC
- Doors and windows – Sealing frames, conservatories, and glazing systems
- Roofing and construction – Canopies, roofs, chimneys, skylights, and gutters

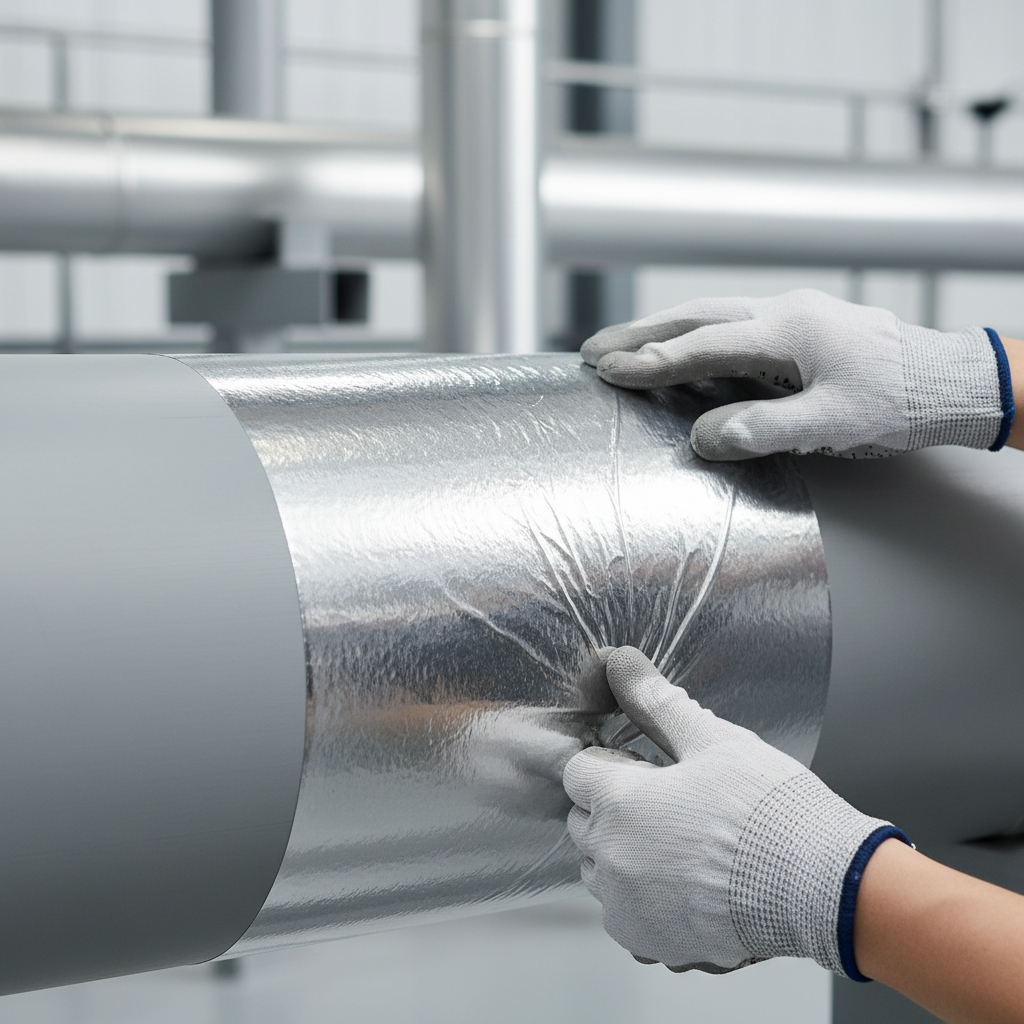

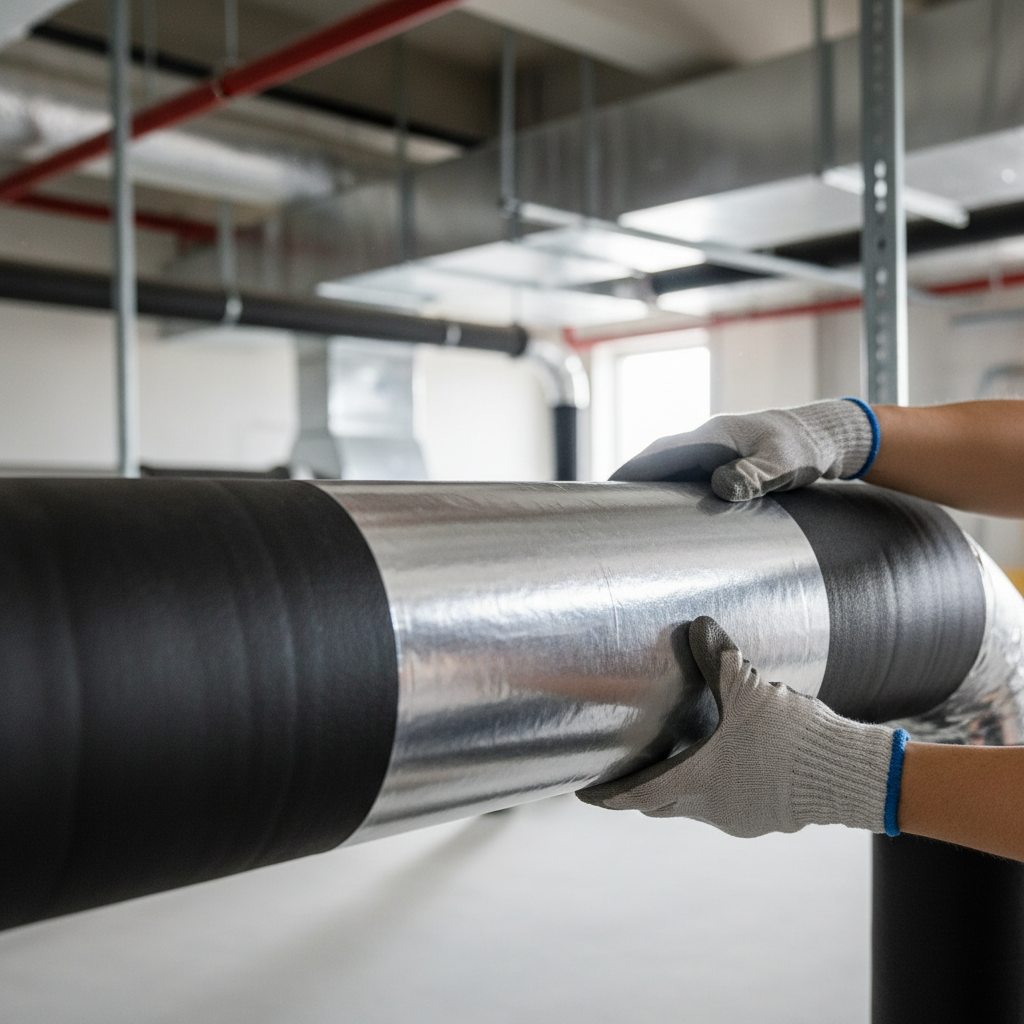

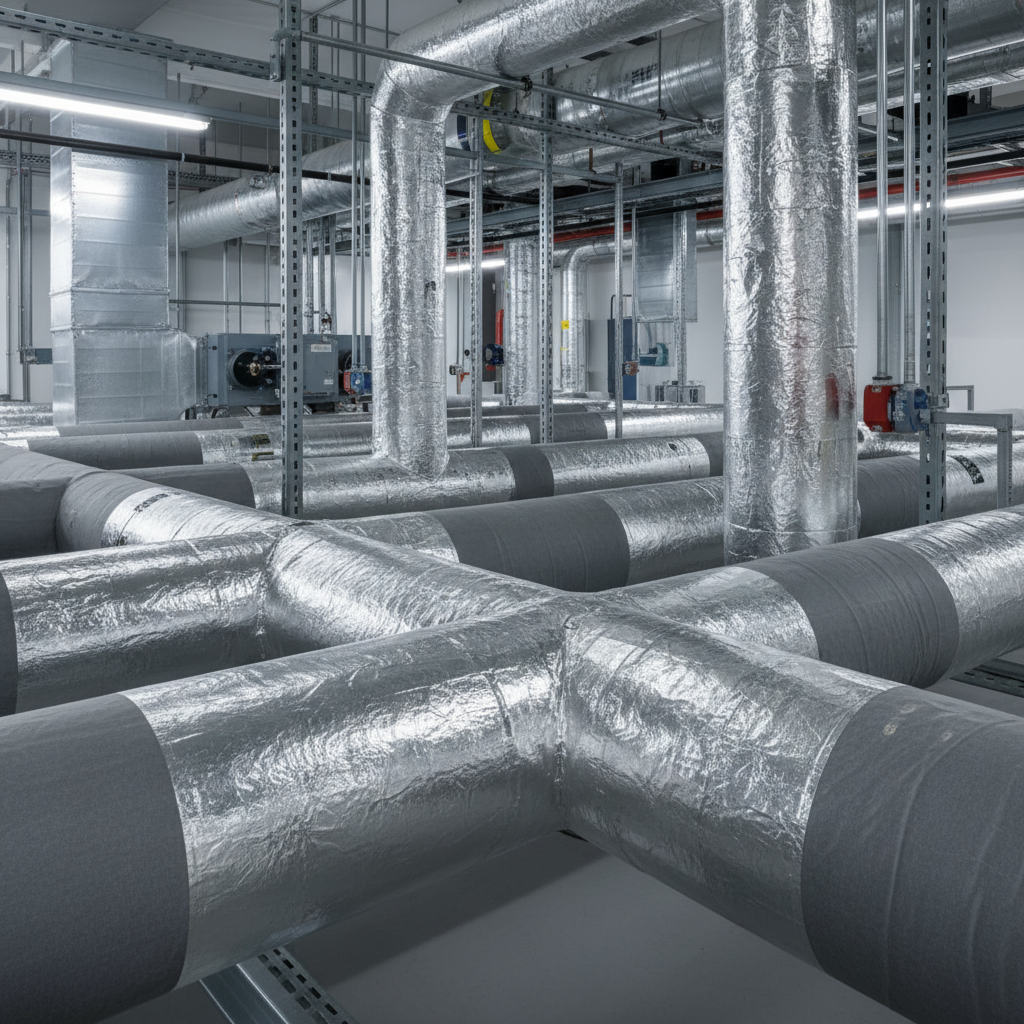

- Piping and ducting – HVAC systems, insulation joints, and ductwork sealing
- External insulation applications – Ensures perfect grip, protecting the inside of insulation against humidity formation
Key Features
- Tear-resistant – Reinforced aluminium-PET film construction
- Cold applied – Excellent adhesion at low temperatures (down to 0°C)
- Waterproof and self-sealing – 100% solids, no oil migration
- Excellent heat stability – Service temperature range -30°C to +90°C
- UV and ageing resistant – Long-lasting outdoor performance
- Solvent-free – Safe for use on sensitive substrates
- Easy application – No special tools required, cold applied
Technical Specifications
| Property | Value | Test Method |
|---|---|---|
| Film Type / Colour | Aluminium - PET | - |
| Compound Type / Colour | Butyl Rubber Adhesive / Grey | - |
| Standard Thickness | 0.8 mm | - |
| Length | 10 m | - |
| Width | 100 mm | - |
| Tensile Strength | Long. 185 N/50mm | Trans. 200 N/50mm | EN 12311-1 |
| Elongation to Break | Long. 10% | Trans. 20% | EN 12311-1 |
| Solids | 100% | - |
| 180° Peel Adhesion | 20 N/cm | ASTM D 1000 |
| Probe Tack | 8.0 N | ASTM D 2979 |
| Vertical Flow | 0 mm | ISO 7390 |
| Application Temperature | 0°C to +40°C | - |
| Service Temperature | -30°C to +90°C | - |
| Fire Classification | E | EN 13501-1 |
| Water Vapour Resistance | μ = 2,720,000 | UNI EN 1931 |
| TVOC Emissions | 30 μg/m³ | ISO 16000-6 |
Application Instructions
- Choose the most suitable width and metal finish of the sealing tape
- Ensure surface is clean, dry, smooth, and dust-free
- For applications between 0°C and 5°C, ensure frost or condensation are absent
- Unroll tape to desired length and remove release liner
- Position the sealing tape and roll-press to avoid air bubbles
- When connecting two tapes, use an overlap of at least 5 cm
- Press with a roller or cloth pad for optimal adhesion
Storage & Shelf Life
Use within 12 months from production date. Store in original unopened packaging in a dry, well-ventilated place at +5°C to +40°C. Storage above 50°C may lead to difficulties removing the release liner. Product is not affected by frost.
Important: Butyl sealants are plastic products with no elastic recovery. Do not use for permanent fixing or load-bearing applications instead of an adhesive or mechanical fixing. Butyl adhesive is sensitive to solvents - check chemical compatibility with substrate adhesives.
K-FLEX reserves the right to change data and technical requirements without notice.
