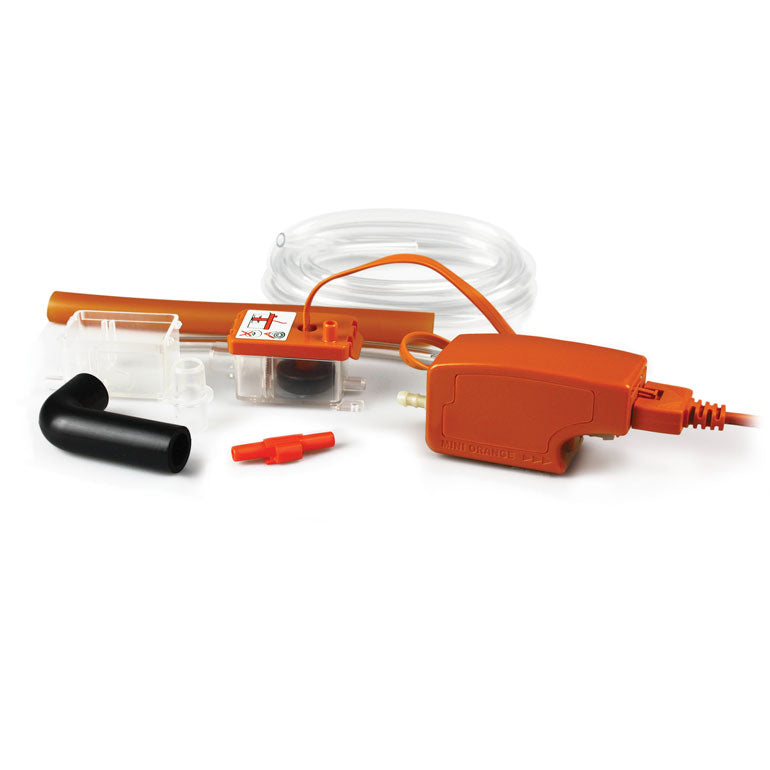

The Aspen Mini Orange FP2212 is the UK's best-selling condensate removal pump — a compact, dependable workhorse trusted by HVAC engineers on thousands of installations every year. Designed for split and multi-split air conditioning systems up to 12kW, the FP2212 delivers reliable condensate removal with a 12 L/h flow rate and 10m maximum head, covering the vast majority of residential and light commercial applications.
The distinctive orange housing provides instant on-site identification, and the plug-and-play design means no specialist tools are required. A straightforward, proven choice for standard installations where reliability and value matter.
Key Features
- Max flow rate: 12 L/h
- Max head: 10m
- Suitable for AC systems up to 12kW
- Plug-and-play installation — no tools required
- Compact design fits neatly behind most indoor units
- Alarm output for system shutdown on pump failure
- Distinctive orange housing for easy on-site identification
- UK plug included
Typical Applications
- Residential and light commercial split AC systems up to 12kW
- Wall-mounted and cassette indoor units
- Standard installations where reliability and cost-effectiveness are priorities

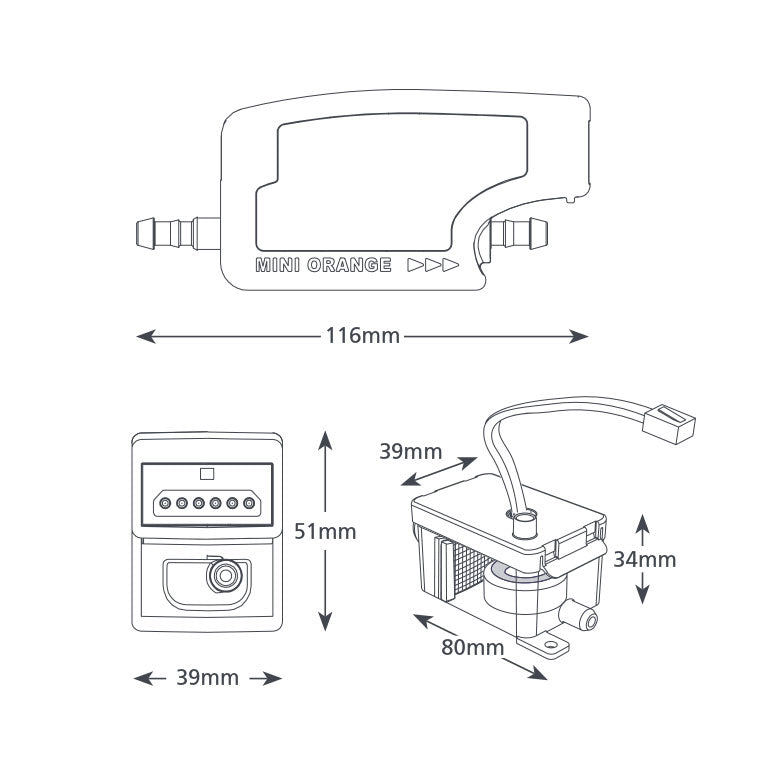

Technical Specifications
| Model | FP2212 |
| Max flow rate | 12 L/h |
| Max head | 10m |
| Power supply | 220–240V / 50Hz |
| Max liquid temperature | 60°C |
| Inlet diameter | 6mm / 8mm (adaptors included) |
| Outlet diameter | 6mm OD |
| Colour | Orange |
| Brand | Aspen Pumps |
