Aspen Xtra Quick Positioning Channel Clip — Pack of 10

Aspen Xtra Quick Positioning Channel Clip — Pack of 10

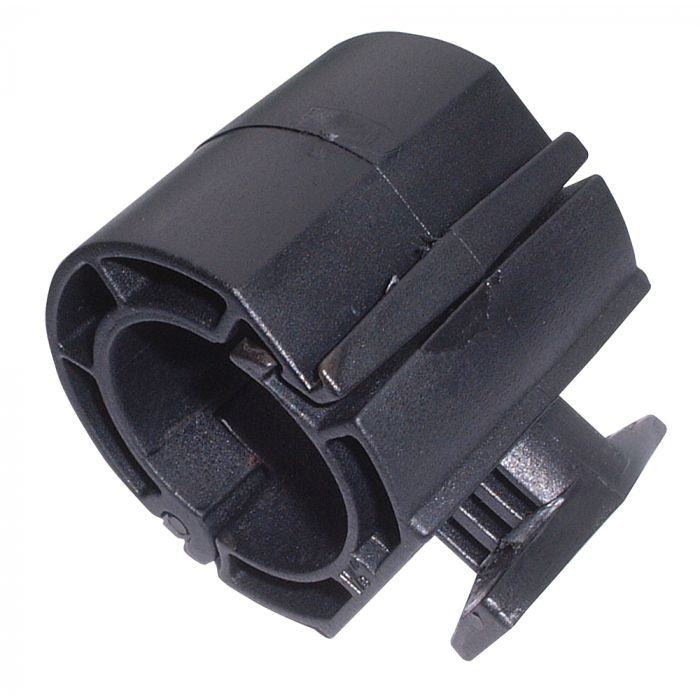

A simple twist-and-clip nylon channel clip designed for fast, secure pipe support in air conditioning and refrigeration installations. Installs easily into 40mm x 40mm or 40mm x 20mm aluminium channel — no tools required. The external diameter matches the pipe diameter with 9mm insulation, dampens noise and vibrations, and offers excellent resistance to oil.

Key Features

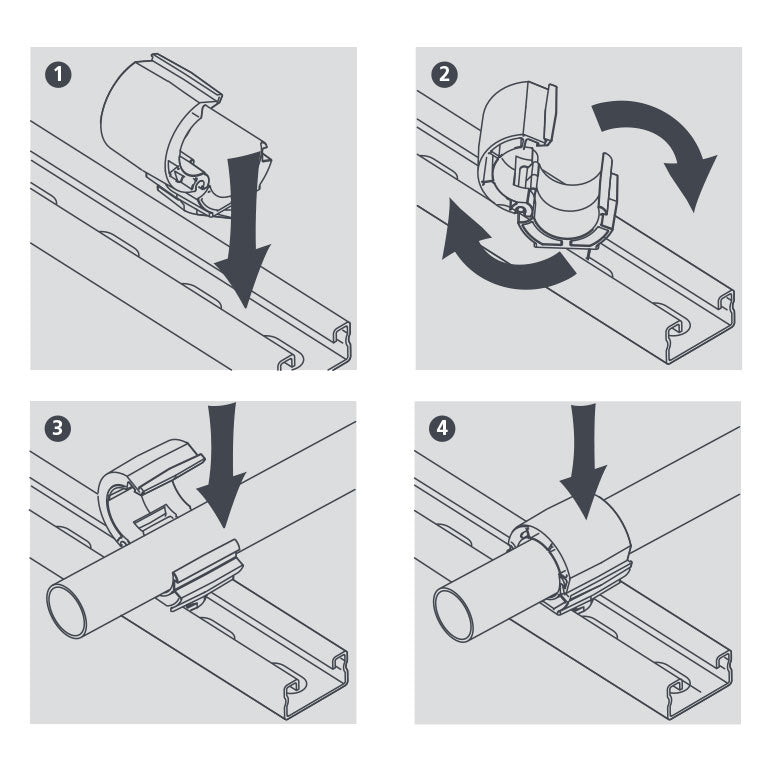

• Easy twist-and-clip installation — into 40mm x 40mm or 40mm x 20mm channel
• Nylon construction — oil resistant, dampens noise and vibrations
• External diameter matches pipe + 9mm insulation
• Compatible with Fix-it Foot from Big Foot Systems
• Max. temperature: 70°C
• Max. recommended distance per clip: 1.2m
• Pack of 10 — available in 9 sizes from 1/4" to 1-5/8"

Sizing Options

• 1/4" — B6445/10 — 21mm height above channel
• 3/8" — B6447/10 — 24mm height above channel
• 1/2" — B6444/10 — 27mm height above channel
• 5/8" — B6448/10 — 31mm height above channel
• 3/4" — B6446/10 — 34mm height above channel
• 7/8" — B6449/10 — 37mm height above channel
• 1-1/8" — B6442/10 — 43mm height above channel
• 1-3/8" — B6443/10 — 50mm height above channel
• 1-5/8" — B6538/10 — 56mm height above channel

Aluminium Channel (3m lengths) available separately — Part No. B6023.
